ATC Electrospindles

RC-RA110/22505AXHSKF63CRPD

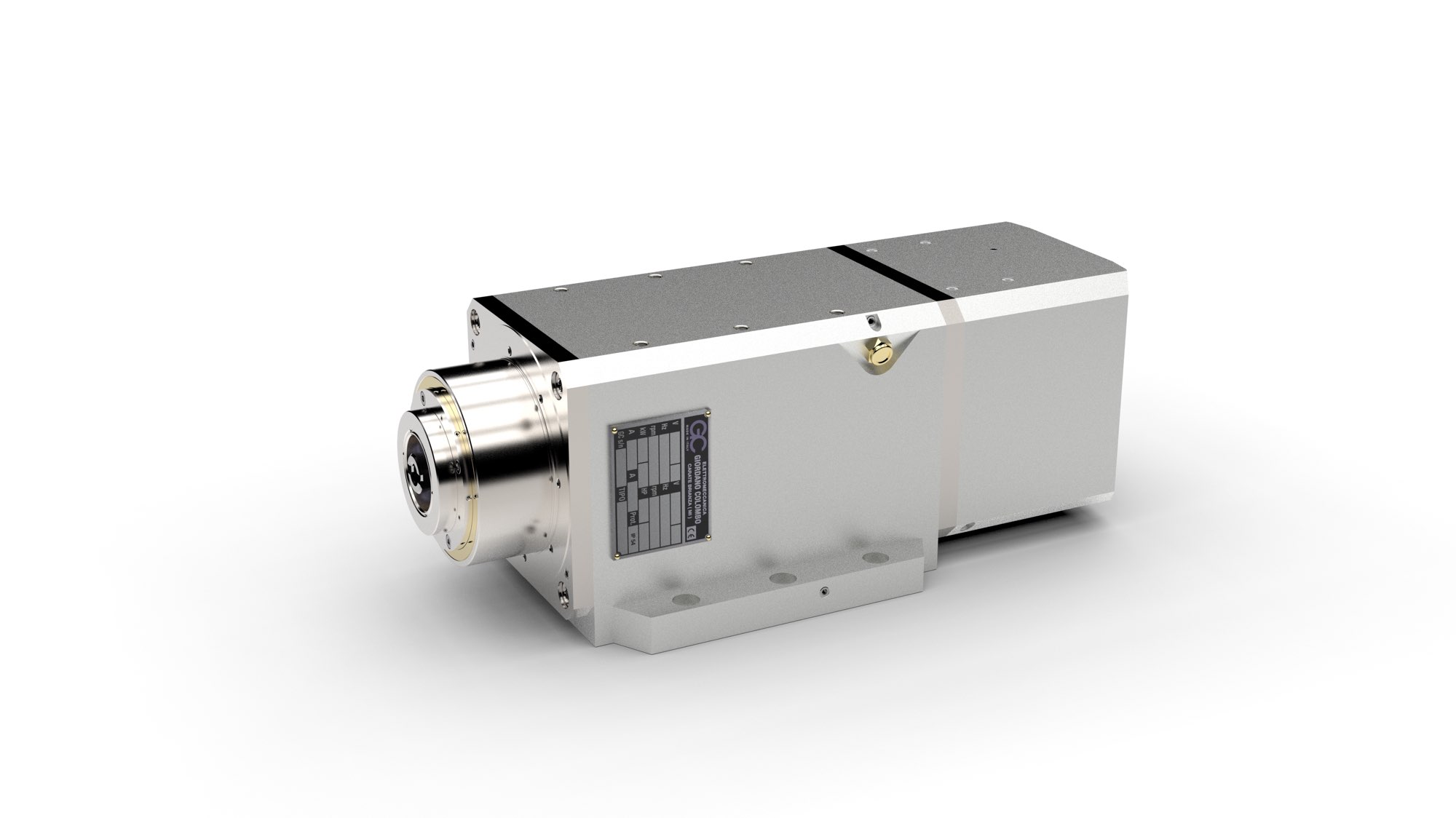

Immagine per RC-RA110/22505AXHSKF63CRPD
Indicative image
SeriesRC
Wattage S18 kW
Torque S14,24 Nm
Velocità Max rpm
CoolingLiquid/Compressed Air
Tool connectionHSK F63
Cod: 9.1.569.2.1274003363
Materials
Wood
Composite material
Wood
Lightweight alloys
Metal
Appropriate Caution
Layout
Contact us to get the PDF file Contact us to get the 3D file
Ingombro per RC-RA110/22505AXHSKF63CRPD

Ingombro per RC-RA110/22505AXHSKF63CRPD

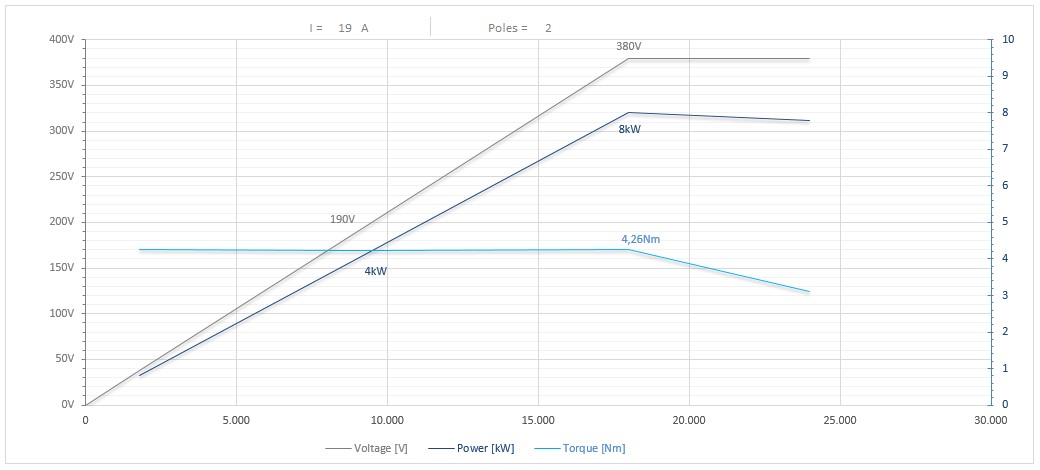

Performance
Download in PDF
Diagramma per RC-RA110/22505AXHSKF63CRPD

Diagramma per RC-RA110/22505AXHSKF63CRPD

More Features

FeatureRate
SeriesRC
CoolingLiquid/Compressed Air
Tool connectionHSK F63
Tool changeAutomatic
Sensoristica S1 (Shaft rotation), S2 (Open gripper), S3 (Tool gripping), S4 (Return cylinder)
BearingsCeramic/Ceramic - Grease lubricated for life
Cilindro di sbloccoSingle-acting pneumatic
Technical Data
FeatureRate
Wattage S18 kW
Torque S14,24 Nm
Nominal Speed rpm
Rotation speed Max rpm
Power19 A
Voltage380 V
Weight28 Kg
