ATC Electrospindles

RC90/2235FP1ISO25CRPDSF

Immagine per RC90/2235FP1ISO25CRPDSF
Indicative image
SeriesRC
Wattage S14 kW
Torque S12,12 Nm
Velocità Max rpm
CoolingCompressed Air
Tool connectionISO 25 SF
Cod: 9.1.425.2.0291031696
Materials
Wood
Composite material
Wood
Lightweight alloys
Metal
Appropriate Caution
Layout
Contact us to get the PDF file Contact us to get the 3D file
Ingombro per RC90/2235FP1ISO25CRPDSF

Ingombro per RC90/2235FP1ISO25CRPDSF

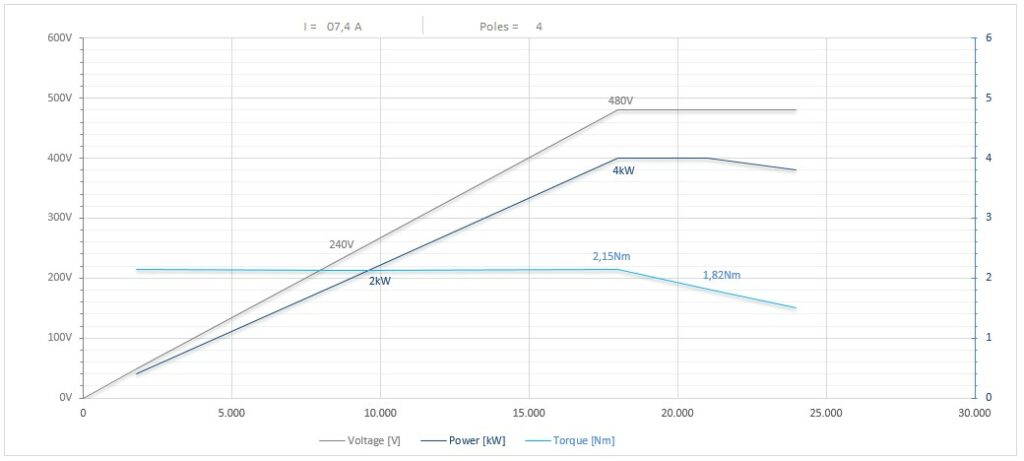

Performance
Download in PDF
Diagramma per RC90/2235FP1ISO25CRPDSF

Diagramma per RC90/2235FP1ISO25CRPDSF

More Features

FeatureRate
SeriesRC
CoolingCompressed Air
Tool connectionISO 25 SF
Tool changeAutomatic
Sensoristica S1 (Shaft rotation), S2 (Open gripper), S3 (Tool gripping), S4 (Return cylinder)
BearingsSteel/Steel - grease lubricated for life
Cilindro di sbloccoSingle-acting pneumatic
Technical Data
FeatureRate
Wattage S14 kW
Torque S12,12 Nm
Nominal Speed rpm
Rotation speed Max rpm
Power7,4 A
Voltage480 V
Weight18 Kg
